Supply grab machine | gantry crane | special reel cable for crane equipment Wholesale

Supply grab machine | gantry crane | special reel cable for crane equipment

Especificación

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Pregunte ahora Siguiente Producto

INTRODUCCIÓN

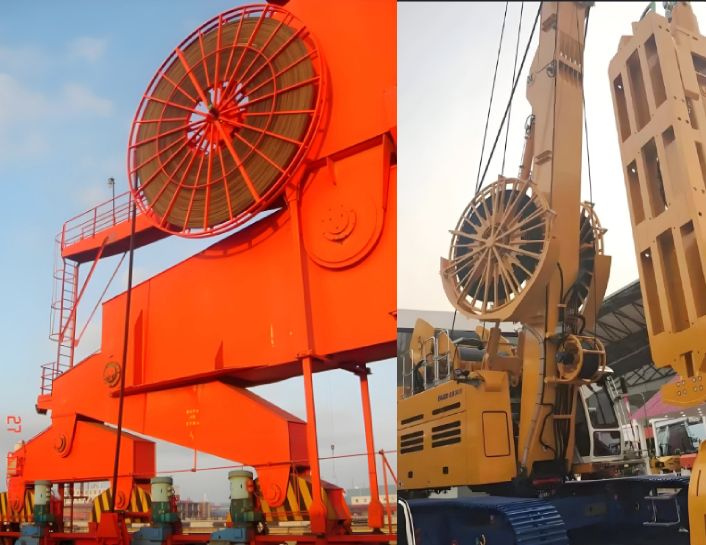

Application scope of derul reeling cable:

Mainly used in various grab machines, gantry cranes, and mobile power supply systems of cranes. It is suitable for drum equipment with frequent retraction and retraction operations. It is especially suitable for cables that have both stretching requirements, twisting, and forced movement. occasion. Suitable for installation in wet or dry indoor and outdoor installations.

derul reeling cable features:

High tensile strength and winding resistance

Withstands extreme mechanical loads

Oil resistance complies with EN60811-404

PUR sheath, highly wear-resistant

Excellent low temperature resistance

derul reeling cable technical certification:

CE certification

Comply with VDE0250

RoHS,REACH

derul reel cable structure:

Stranded bare copper wire, compliant with IEC60228, Category 5

TPE core wire insulation

Tensile strengthening core (located in the center of the cable)

PUR inner sheath

Wide mesh aramid braid

PUR outer sheath

Outer sheath black, yellow

derul reeling cable technical parameters:

Core wire identification: black core wire white number number according to DIN VDE0293

Conductor resistance: Comply with IEC60228 Category 5 standard

Rated voltage: ≤6mm²: 450/750V; >6mm²: 0.6/1KV

Insulation resistance: >20MΩ x km

Test voltage: 4000V

Ground protection core wire: G = includes yellow-green ground protection core wire, X = does not include yellow-green ground protection core wire

Temperature range: fixed installation: -40 to +80℃; mobile installation: -40 to +80℃

Minimum bending radius: fixed installation: 5X cable diameter, mobile installation: 7.5X cable diameter

VENTAJAS

Tensile and wear-resistant, high mechanical stress resistance, drag resistance, distortion resistance, strong and efficient! High wear resistance:

The outer sheath of high-quality imported polymer special flexible wear-resistant mixture material can enable the cable to withstand long-term friction of ores without being damaged; High tensile strength:

special tensile design, the maximum tensile strength during installation and use can meet 1800N, and the core wire will not break when the cable is dragged;

Torsion resistance: The design of the special anti-torsion layer can effectively prevent the cable from spinning and resisting torsion and deformation. Corrosion resistance:

resistant to acid, alkali and various liquids, aging resistance, weather resistance, oil resistance, It solves a series of problems of ordinary cables such as easy cracking, easy breaking, and easy aging. The service life is 4 to 6 times that of ordinary cables. It can replace imported cables and is highly cost-effective.

CAPACIDAD DE PERSONALIZACIÓN

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

Preguntas más frecuentes

Q: ¿Derul Cable es un fabricante o una empresa comercial?

A: Derul Cable es un fabricante de cables especiales con sede en Shanghai.

Q: ¿El precio es negociable?

A: Sí, el precio es negociable de acuerdo con la cantidad de compra.

Q: ¿Cuál es el MOQ regular para el cable?

A: Cualquier cantidad está bien para comprar para el producto en stock. Para el producto que debe fabricarse después del pedido, el MOQ suele ser de 100 a 200 m por tipo.

Q: ¿Cómo puedo obtener muestras?

A: Después del pago del costo potencial, incluido el flete expreso y la confirmación de la dimensión y estructura del cable, organizaremos la muestra y la enviaremos directamente a su puerta.

Q: ¿Está disponible el servicio OEM o ODM?

A: Los servicios de OEM y ODM están disponibles. Puede proporcionarnos su requisito y lo evaluaremos para avanzar.

Q: ¿Cuál es el tiempo de producción regular?

A: Para una cantidad regular, generalmente requiere entre 15 y 25 días para producirse.
