rov zero buoyancy cable CE certified PUR sheath

rov zero buoyancy cable CE certified PUR sheath | Made in China

Especificación

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Pregunte ahora Siguiente Producto

INTRODUCCIÓN

derul cable application scope:

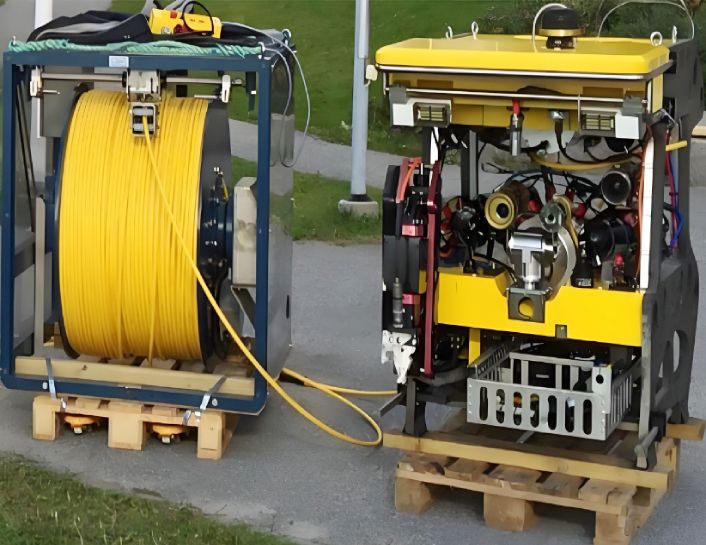

Zero buoyancy cables are mostly used for underwater robots or underwater equipment control signal lines. They can overcome their own weight and float on the water surface, and have good waterproof performance. There will be no dislocation, twisting or deformation between cable cores during long-term use, which can fully meet the needs of robots. The need for long-term work underwater.

derul zero buoyancy cable technology certification:

CE certification

Comply with IEC60227-5

RoHS

derul zero buoyancy cable cable structure:

Stranded bare copper wire, compliant with IEC60228, Category 6

PE/PP/TPE core wire insulation

Core wires are twisted into cables (anti-twist layered structure design)

Aramid tensile elements

Tinned copper wire shield (optional)

Special seawater-resistant buoyancy foamed PU inner sheath

Special polyether PUR outer sheath

Outer sheath yellow

derul zero buoyancy cable technical parameters:

Conductor resistance: Comply with IEC60228 Category 6 standard

Rated voltage: <0.5mm²: 300/300V; ≥0.5mm²: 300/500V

Insulation resistance: >20MΩ x km

Test voltage: <0.5mm²: 1500V; ≥0.5mm²: 2000V

Temperature range: fixed installation: -40 to +80℃; mobile installation: -40 to +80℃

Minimum bending radius: 6X cable outer diameter

Kind tips:

Since underwater robot cables are used in complex and harsh environments, users are requested to elaborate on the cable's application and environment, electrical performance requirements, outer diameter requirements, strength requirements, etc. in detail when communicating with our engineers. We will design and manufacture durable, high-performance drum cables based on the cable models, cable specifications, and equipment conditions provided by our customers to provide customers with reliable operation of their equipment and stable guarantee for power transmission.

VENTAJAS

As a new type of waterproof wire and cable, the waterproof performance is even better. The zero-buoyancy cable can be cut into specific sections according to the customer's actual length and is easy to use.

High flexibility, tensile strength, oil resistance, shallow water resistance, and excellent weather resistance

Wear-resistant, bend-resistant, tear-resistant, and able to withstand heavy mechanical external forces

Faster acceleration and stronger bending resistance than ordinary flexible cables

The laying distance is long and it is more suitable for high-frequency and fast moving situations.

CAPACIDAD DE PERSONALIZACIÓN

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

Preguntas más frecuentes

Q: ¿Derul Cable es un fabricante o una empresa comercial?

A: Derul Cable es un fabricante de cables especiales con sede en Shanghai.

Q: ¿El precio es negociable?

A: Sí, el precio es negociable de acuerdo con la cantidad de compra.

Q: ¿Cuál es el MOQ regular para el cable?

A: Cualquier cantidad está bien para comprar para el producto en stock. Para el producto que debe fabricarse después del pedido, el MOQ suele ser de 100 a 200 m por tipo.

Q: ¿Cómo puedo obtener muestras?

A: Después del pago del costo potencial, incluido el flete expreso y la confirmación de la dimensión y estructura del cable, organizaremos la muestra y la enviaremos directamente a su puerta.

Q: ¿Está disponible el servicio OEM o ODM?

A: Los servicios de OEM y ODM están disponibles. Puede proporcionarnos su requisito y lo evaluaremos para avanzar.

Q: ¿Cuál es el tiempo de producción regular?

A: Para una cantidad regular, generalmente requiere entre 15 y 25 días para producirse.
